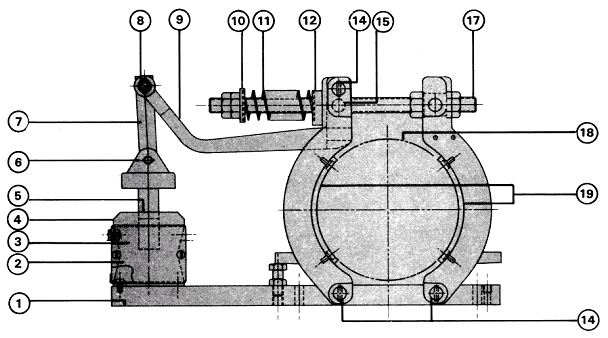

Ametek Gemco CB15 AC Magnetic Shoe Brake Assembly and All Replacement Parts

No Qty
Req'd
Part
Number
Description Picture Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
0 1 AME-CB-15 Ametek Gemco Solenoid Brake Assembly
Part CB-15
CB15
Spring Set / Solenoid Released
4.5 Inch Diameter
Many AC Voltages 460, 230, 115, 575
60 Hz Single Phase
15 FT LB Intermittent Duty Cycle
10 Ft LB Continuous Duty Cycle
Reliable design with very few parts
Simple one point torque adjustment
Rugged long life solenoid - tested in more than 2 million operational cycles
Manual brake release with hand pressure on the solenoid arm
Solenoid plunger travel indicator
A mark on the plunger indicates when the brake should be adjusted for lining wear
Simple two-point adjustment for lining wear
Light Duty Solenoid brake for up to Class "C" Cranes
Application Safety Factors need to be followed during selection
Brake Wheel sold separately
Normally a Stock Item @ BPI
Ships from Stock to 6 Weeks
Dated 01-2023
(20LBS) H 9" L 12" W 6" Box
4 $1,201.00
1 1 AME-E004068 Ametek Gemco Base / Frame
Part E004068
For a CB-15 Solenoid Brake
Item 1, 1 per brake
aka 9510D16H01 E004068006
C.F. for Pricing
Dated 01-2024
- 0 $400.00
2 1
AME-E004104 Ametek Gemco Coil
Part E004104
For a 4.5 Inch CB-15 AC Solenoid Brake
115 Volt 60 Hz Single Phase
Old 3280B04G01 aka E004104997
Dated 01-2024
(1LBS) H 4" L 5" W 4" Box
4 $280.00
AME-E004105 Ametek Gemco Coil
Part E004105
aka E004105997
Coil 230 Volt AC
For a 4.5 Inch CB-15 Solenoid Brake
230 Volt 60 Hz. Single Phase
Old WEST 3280B04G02
Dated 01-2024
(1LBS) H 4" L 5" W 4" Box
0 $280.00
AME-E004102 Ametek Gemco Coil 460 Volt CB-15
Part E004102
aka E004102997
Old 3280B04G03
For a 4.5 Inch CB-15 Solenoid Brake
460 Volt 60 Hz Single Phase
Normally a Stock Item @ BPI
Dated 01-2024
(1LB) H 4" L 4" W 4" Box
0 $280.00
AME-E004106 Ametek Gemco Coil 575 Volt CB-15
Part E004106
For a 4.5 Inch CB-15 Solenoid Brake
575 Volt 60 Hz. Single Phase
Old 3280B04G04 aka E004106997
Dated 01-2024
(1LBS) H 4" L 5" W 4" Box
2 $280.00
AME-E004107 Ametek Gemco Coil 200 Volt CB-15
Part E004107
For a 4.5 Inch CB-15 Solenoid Brake
200 Volt 60 Hz. Single Phase
Old 3280B04G17 aka E004107997
Dated 01-2024
(1LBS) H 4" L 5" W 4" Box
0 $292.00
3 1 AME-E005044 Ametek Gemco Condulet - Junction Box
Part E005044
aka E005044999
For a CB-15 or CB-35 Solenoid Brake
Item 3, 1 per brake
Does NOT include the Cover Part E005095
Normally a Stock Item @ BPI
Ships from Stock to 2 Weeks
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
- 0 $71.00
4 1 AME-E004109 Ametek Gemco Solenoid Assembly CB-15
Part E004109
aka E004109002
Old Part 3279B97H01
For a 4.5 Inch CB-15 AC Solenoid Brake
Includes Plunger & Solenoid Guides but NOT the Coil
Normally a Stock item @ BPI
Ships from Stock to 2 Weeks
Dated 01-2024
(4LBS) H 4" L 6" W 4" Box
0 $319.00
5 2 AME-E005050 Ametek Gemco Solenoid Guide
Part E005050
aka E005050999
Old Part 6753A37H02
For a CB-15 or CB-35 Brake Assembly
Brass Fabrication not Plastic
Item 5, 2 per brake, but sold each
Normally a Stock item @ BPI
Ships from Stock to 2 Weeks
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
10 $42.00
6 1 AME-E004056 Ametek Gemco Pin CB-15
Part E004056
aka E004056006
Old Part 2247C08H03
Pin Connects Plunger & Link
For a CB-15 Brake Assembly
Item 6, 1 per brake
Normally a Stock Item @ BPI
Ships from Stock to 10 Days
Dated 01-2024
(1LB) H 4" L 6" W 4" Box
6 $48.00
7 1 AME-E004062 Ametek Gemco Link
Part E004062
aka E004062006
Link between Plunger & Lever Arm
For a CB-15 Brake Assembly
Item 7, 1 per brake
aka Old 3279B92H01
Dated 01-2024
(1LB) H 4" L 6" W 4" Box
0 $49.00
8 1 AME-E004055 Ametek Gemco Pin
Part E004055
For a CB-15 Brake Assembly
Connects Link & Lever
Item 6, 1 per brake
aka 2247C08H02 E004055006
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
- 4 $48.00
9 1 AME-E004059 Ametek Gemco Lever
Part E004059
For a CB15 4 & 1/2 Inch Brake Assembly
Lever between plunger link and inner shoe arm
aka Old West 2247C09H01 E004059999
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
- 0 $136.00
10 1 AME-E004063 Ametek Gemco Spring Seat on the Tie Rod
For a CB-15 Solenoid Brake
Part E004063
Item 10, 1per brake
aka 3279B94H02 E004063006
Dated 01-2024
(1LBS) H 4" L 5" W 4" Box
- 0 $33.00
11 1 AME-E004065 Ametek Gemco Spring
Part E004065
Main Spring for a CB-15 4.5 Inch Brake
Item 11, 1 per brake
aka 3280B02H01 E004065993
Dated 01-2024
(1LBS) H 4" L 5" W 4" Box
2 $77.00
12 1 AME-E004111 Ametek Gemco Spring Plate Assembly
Part E004111
Spring Plate Assembly on the Tie Rod
For a 4.5 Inch CB-15 AC Solenoid Brake
Item 12, 1 per brake
Old 3279B90G01 aka E004111999
Dated 01-2024
(2LBS) H 4" L 5" W 4" Box
- 0 $121.00
14 3 AME-E004054 Ametek Gemco Pin
Part E004054
For a CB-35 Brake
Item 14, 3 per brake
At the@ bottom & top of brake shoes
aka 2247C08H01 E004054006
Dated 01-2024
(1LB)
3 $82.00
15 1 AME-E004058 Ametek Gemco Pin
Part E004058
For a CB15 Brake
Item 15, 1 per brake
aka E004058006
Dated 01-2024
(1LB)
- 2 $45.00
17 1 AME-E004060 Ametek Gemco Rod
Part E004060
Adjusting Rod
For a CB-15 4 & 1/2 Inch Brake
Item 17, 1 per brake
aka 3279B86G01 E004060006
Dated 01-2024
- 0 $335.00
18 1 AME-E004500 Ametek Gemco Brake Wheel 4.5 Inch
Part E004500
aka E004500999
For the TM-43 DC Brake Assembly
With the Offset Style Hub
4.50 Inch Wheel Diameter
3.13 Inch Face Width
2.62 Inch Hub Offset
2.00 Inch Hub Length Through Bore
2.75 Inch Hub Diameter
Solid Hub with Bore Center Drilled
1.625 Inch Maximum Recommended Bore
9850 Maximum RPM
Cast from ASTM A 536 Ductile Iron
80-60-03 or 80-55-06
Dated 10-2021
(6LBS) H 5" L 5" W 5" Box
6 $1,272.24
  1 AME-E004113 Ametek Gemco Brake Shoe Assembly CB-15
Part E004113
aka E004113004
Inner Brake Shoe
For a CB-15 Solenoid Brake 4.5 Inch
With Premium OEM Non-Asbestos Lining Material
Old 2254C28G01
Normally a stock item @ BPI
Ships from stock to 3 Weeks
Dated 01-2024
(3LBS) H 4" L 6" W 4" Box
- 0 $391.00
  1 AME-E004114 Ametek Gemco Brake Shoe Assembly CB-15
Part E004114
aka E004114004
Outer Brake Shoe on a CB-15 Brake
With premium non-asbestos lining material
Old WEST 2254C27G01
Normally a stock item @ BPI
Ships from stock to 3 Weeks
Dated 01-2024
(3LBS) H 4" L 6" W 4" Box
0 $391.00
19 1 AME-E004101 Ametek Gemco Lining and Rivet Kit
Part E004101
For a 4.5 Inch CB-15 AC Solenoid Brake
Linings have 4 countersunk holes for the rivets
Also available undrilled for bonded brake shoes
1 kit per brake
A recommended spare part
Old 3279B95G01 aka E004101005
C.F. for Pricing
Dated 01-2024
(1LB)
- 2 N/A N/A N/A
