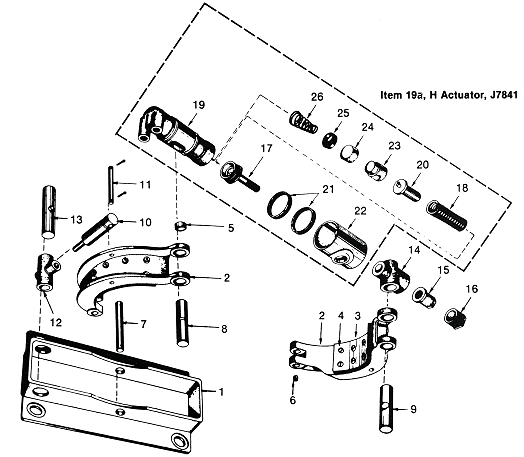

Ametek Gemco J002779 8 X 3 H Hydraulic Brake Assembly and All Replacement Parts

No Qty
Req'd
Part
Number
Description Picture Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
0 1 AME-J002779 Ametek Gemco Hydraulic Brake 8 Inch H Part AME-J002779 8 X 3 Inch Hydraulic Brake Assembly 200 to 450 FT LBS [Amazon] Dated 1/18 (30LB) H 30" L 30" W 30" Box 1 $2,527.00
1 1 AME-J002398 Ametek Gemco Base Brake Base / Frame Part AME-J002398 For 6 or 8 Inch Hydraulic Brakes H & HM 6 Inch J23020 J024579 & 8 Inch , J002779 J003205 Item 1, 1 per brake - 1 $436.00
2 2 AME-J007844 Ametek Gemco Brake Shoe Assembly Part J007844 Brake Shoe & Lining Complete with Bushings For J002779 or J003205 8 Inch Hydraulic Brakes Item 2, 2 per brake, sold each aka J007844002 [Amazon] Dated 1/18 (7LBS) H 4" L 10 W 5" Box 0 $551.00
3 2 AME-J007846 Ametek Gemco Lining Part AME-J007846 Drilled Lining 8 Inch Diameter For a 8 Inch Hydraulic Brake Assembly IND-393DC Item 3, 2 per brake, sold each Qty. 8 drilled & countersunk holes For brass fasteners J000387 which are not included Dated 1/18 (2LBS) H 4" L 6 W 4" Box - 0 $85.00
4 16 AME-J000387 Ametek Gemco Fastener Part AME-J000387 Brass Brake Lining Fastener Assembly For use with Lining J23024 & J007846 Item # 4 Brass Slotted Screw / Bolt, Nut & Lockwasher For 6 & 8 Inch Hyd Brakes 6 per lining, 12 per brake, sold each aka J387 Product available at Amazon.com and BrakeProducts.com [Amazon] Dated 1/17 (1LB) H 4" L 5" W 4" Box 300 $5.00
5 4 AME-J073920 Ametek Gemco Pin & Bushing Kit For the 6 or 8 Inch Hydraulic Brake Includes 5 different items: 4 J009405 Bushing 4 J001958 Bushing 1 J009408 Pin 1 J009412 Pin 1 J009413 Pin aka J07392000 [Amazon] (3LBS) H 4" L 6" W 4" Box 5 $204.00
6 4 AME-J073920 Ametek Gemco Pin & Bushing Kit For the 6 or 8 Inch Hydraulic Brake Includes 5 different items: 4 J009405 Bushing 4 J001958 Bushing 1 J009408 Pin 1 J009412 Pin 1 J009413 Pin aka J07392000 [Amazon] (3LBS) H 4" L 6" W 4" Box 5 $204.00 Item #5 -
7 1 AME-J073920 Ametek Gemco Pin & Bushing Kit For the 6 or 8 Inch Hydraulic Brake Includes 5 different items: 4 J009405 Bushing 4 J001958 Bushing 1 J009408 Pin 1 J009412 Pin 1 J009413 Pin aka J07392000 [Amazon] (3LBS) H 4" L 6" W 4" Box 5 $204.00 Item #5 -
8 1 AME-J073920 Ametek Gemco Pin & Bushing Kit For the 6 or 8 Inch Hydraulic Brake Includes 5 different items: 4 J009405 Bushing 4 J001958 Bushing 1 J009408 Pin 1 J009412 Pin 1 J009413 Pin aka J07392000 [Amazon] (3LBS) H 4" L 6" W 4" Box 5 $204.00 Item #5 -
9 1 AME-J073920 Ametek Gemco Pin & Bushing Kit For the 6 or 8 Inch Hydraulic Brake Includes 5 different items: 4 J009405 Bushing 4 J001958 Bushing 1 J009408 Pin 1 J009412 Pin 1 J009413 Pin aka J07392000 [Amazon] (3LBS) H 4" L 6" W 4" Box 5 $204.00 Item #5 -
10 1 AME-J105190 Ametek Gemco Anti-Drag Kit Part J105190 For a 6 or 8 Inch Hyd Brakes Holds Brake shoes in the released position Items Items: Item 10, J9414 Retractor Spring Item 11, J9429 Pin Item 12, J9428 Anti-Drag Housing Item 13, J9423 Pin [Amazon] Dated 1/18 (3LBS) H 4" L 6" W 3" Box 3 $279.00
11 1 AME-J105190 Ametek Gemco Anti-Drag Kit Part J105190 For a 6 or 8 Inch Hyd Brakes Holds Brake shoes in the released position Items Items: Item 10, J9414 Retractor Spring Item 11, J9429 Pin Item 12, J9428 Anti-Drag Housing Item 13, J9423 Pin [Amazon] Dated 1/18 (3LBS) H 4" L 6" W 3" Box 3 $279.00 Item #10 -
12 1 AME-J105190 Ametek Gemco Anti-Drag Kit Part J105190 For a 6 or 8 Inch Hyd Brakes Holds Brake shoes in the released position Items Items: Item 10, J9414 Retractor Spring Item 11, J9429 Pin Item 12, J9428 Anti-Drag Housing Item 13, J9423 Pin [Amazon] Dated 1/18 (3LBS) H 4" L 6" W 3" Box 3 $279.00 Item #10 -
13 1 AME-J105190 Ametek Gemco Anti-Drag Kit Part J105190 For a 6 or 8 Inch Hyd Brakes Holds Brake shoes in the released position Items Items: Item 10, J9414 Retractor Spring Item 11, J9429 Pin Item 12, J9428 Anti-Drag Housing Item 13, J9423 Pin [Amazon] Dated 1/18 (3LBS) H 4" L 6" W 3" Box 3 $279.00 Item #10 -
14 1 AME-J009431 Ametek Gemco Adjusting Sleeve Knuckle Adjusting Sleeve For a 6 Inch J023020 or J024579 Brake For a 8 Inch J02779 or J003205 Brake Hydraulic Brake, H or HM Item 14, 1 per brake Does not include the adj nut or clamp nut Part AME-J009431 (1LB) H 4" L 5" W 4" Box [Amazon] 1 $182.00
15 1 AME-J105191 Ametek Gemco Clamp Nut Kit Part J105191 For a 6 or 8 Inch Hydraulic Brake Items 15 & 16 Includes: JC9432 Adjusting Nut JC9433 Clamp Nut Dated 1/18 (1LBS) H 4" L 5" W 4" Box 8 $48.00
16 1 AME-J105191 Ametek Gemco Clamp Nut Kit Part J105191 For a 6 or 8 Inch Hydraulic Brake Items 15 & 16 Includes: JC9432 Adjusting Nut JC9433 Clamp Nut Dated 1/18 (1LBS) H 4" L 5" W 4" Box 8 $48.00 Item #15 -
  1 AME-J007841 Ametek Gemco Actuating Cylinder Part J007841 Brake Actuating Cylinder For a 6 Inch J23020 or 8 Inch J02779 Brake 1 per brake A recommended spare part [Amazon] Dated 1/18 (5LBS) H 4" L 8" W 4" Box 0 $945.00
17 1 AME-J009396 Ametek Gemco Connecting Rod with Threaded Cap Part of Hydraulic Actuator J007841 For a 6 or 8 Inch Hydraulic Brake Item 17, 1 per brake (1LBS) H 0.50" L 2.68" W 0.30" [Amazon] 2 $90.00
18 1 AME-J009395 Ametek Gemco Spring Return Spring on a J007841 Actuating Cylinder Item 18, 1 per brake For a 6 or 8 Inch Hydraulic Brake (1LB) - 1 $29.00
19 1 AME-J007841 Ametek Gemco Actuating Cylinder Part J007841 Brake Actuating Cylinder For a 6 Inch J23020 or 8 Inch J02779 Brake 1 per brake A recommended spare part [Amazon] Dated 1/18 (5LBS) H 4" L 8" W 4" Box 0 $945.00 Item #16 -
20 1 AME-J009392 Ametek Gemco Guide Spring Guide on a J007841 Actuating Cylinder Item 20, 1 per brake (1LBS) H 4.00" L 5.00" W 4.00" [Amazon] 2 $54.00
21 2 AME-J073918 Ametek Gemco Repair Kit Part AME-J073918 For a J007841 Hydraulic Actuator Used on a 6 or 8 Inch Type H Brake Includes 4 items: Item 21, Felt Seal 9399 Item 24, Piston 9390 Item 25, Cup 666 Item 26, Cup Spring 9389 [Amazon] Dated 1/7 (1LBS) H 4" L 6" W 4" Box 0 $52.00
22 1 AME-J009400 Ametek Gemco Cover Slave Cylinder Cover / Sleeve For a J007841 Brake Actuator Item 22, 1 per brake For a 6 Inch J023020 or 8 Inch & J002779 Hydraulic Brake (1LBS) - 1 $142.00
23 1 AME-J009391 Ametek Gemco Pin Guide On the J007841 Hyd Actuator Part AME-J009391 For a 6 " J23020 0r 8 " J002779 Item 23, 1 per brake - 1 $52.00
24 1 AME-J073918 Ametek Gemco Repair Kit Part AME-J073918 For a J007841 Hydraulic Actuator Used on a 6 or 8 Inch Type H Brake Includes 4 items: Item 21, Felt Seal 9399 Item 24, Piston 9390 Item 25, Cup 666 Item 26, Cup Spring 9389 [Amazon] Dated 1/7 (1LBS) H 4" L 6" W 4" Box 0 $52.00 Item #21 -
25 1 AME-J073918 Ametek Gemco Repair Kit Part AME-J073918 For a J007841 Hydraulic Actuator Used on a 6 or 8 Inch Type H Brake Includes 4 items: Item 21, Felt Seal 9399 Item 24, Piston 9390 Item 25, Cup 666 Item 26, Cup Spring 9389 [Amazon] Dated 1/7 (1LBS) H 4" L 6" W 4" Box 0 $52.00 Item #21 -
26 1 AME-J073918 Ametek Gemco Repair Kit Part AME-J073918 For a J007841 Hydraulic Actuator Used on a 6 or 8 Inch Type H Brake Includes 4 items: Item 21, Felt Seal 9399 Item 24, Piston 9390 Item 25, Cup 666 Item 26, Cup Spring 9389 [Amazon] Dated 1/7 (1LBS) H 4" L 6" W 4" Box 0 $52.00 Item #21 -
