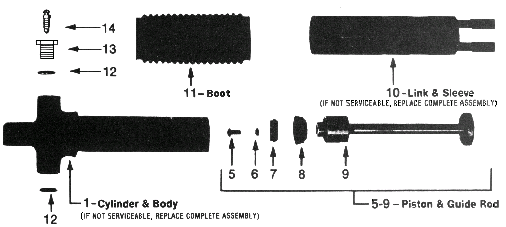

Ametek Gemco Hydraulic Actuating Cylinder J008765 and All Replacement Parts

No Qty
Req'd
Part
Number
Description Picture Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
  1 AME-J008765 Ametek Gemco / Wagner Actuator
Part J008765
aka J008765002 J8765 JFD8765
Hydraulic Brake Actuating / Slave Cylinder on a Brake
1.125 Inch Diameter Bore
2.5 Inch Stroke Length
Qty Two 1/2-20 Connected Ports
For use on some P&H / Morris / Konecranes Brake Systems
Not for use on Gemco / Wagner Brakes
Mfg by Licensed OEM
Normally a Stock Item @ BPI
Ships from Stock to 4 Weeks
Dated 01-2024
(5LBS) H 3" L 10" W 3" Box
3 $694.00
  1 AME-J073913 Ametek Gemco Repair Kit
Part J073913
For a J008765 Hydraulic Actuating Cylinder
1.125 Inch O.D. with a 2.5 Inch Stroke
Includes:
Item 5, Screw 10-32 x 1/2"
Item 8, Cup JFC9704
Item 9, Piston & Guide Rod
Item 11, Boot FC2395
Normally a Stock Item @ BPI
Ships from Stock to 10 Days
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
10 $333.00
  1 AME-J009704 Ametek Gemco Cup
Part J009704
aka J009904992 J9704 JFC-9704
1.125 Inch Diameter
For use in a Hydraulic Actuator J007905 or J008765
Normally a Stock Item @ BPI
Ships from Stock to 3 Days
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
8 $33.00
  1 AME-J002395 Ametek Gemco Boot
Part J002395
Actuator Boot
For Brake Actuating Cylinders
J007905, J023437 & J008765
Item 11
Normally a Stock Item @ BPI
Ships from stock to 3 Days
Dated 10-2021
(1LB) H 4" L 8" W 4" Box
8 $41.04
  1 AME-J105376 Ametek Gemco Gasket
Part J105376
Copper Gaskets
Package of 25 Pieces
Used with J010160 Armored Hose
33/64" I.D.
aka FC17
Dated 01-2023
(1LB) H 4" L 5" W 4" Box
- 1 $39.00
  1 AME-J007346 Ametek Gemco Plug
Part J007346
aka J7346 J007346005
Adaptor Plug with a Bleeder Port
Port / Taped Hole for a Bleeder Screw
1/2-20 Main Thread
Use with Control Cylinders & Actuating Cylinder
F6446 Bleeder Screw is sold separately
F00017 Copper Gasket Sold separately
Ships from Stock to 3 Days
Dated 01-2024
27 $38.00
  1 AME-F006446 Ametek Gemco Bleeder Screw
Part F006446
aka F6446 F006446999
Bleeder Screw
Used with the AME-F00996 & J009705 Adaptor Plug
Which is sold separately
For Control Cylinders & Actuating Cylinders
Ships from Stock @ BPI
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
178 $33.00
  1 AME-J098134 Ametek Gemco Repair Kit
Part J0098134
Actuator Seal Kit
For the 1 & 1/8 Inch Diameter
Actuators J007905 & the J008765
Includes 1 each of items: 5, 6, 7, 8 & 11
NSN 2040-00-361-5109 US Gov #
Normally a Stock Item @ BPI
Ships from Stock to 2 Weeks
Dated 01-2024
(1LBS) H 4" L 5" W 4" Box
- 10 $69.00
