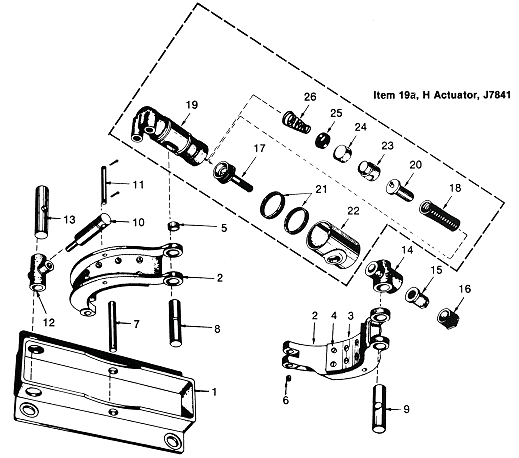

Ametek Gemco J023020 6 X 3 H Hydraulic Brake Assembly and All Replacement Parts

No Qty
Req'd
Part
Number
Description Picture Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
0 1 AME-J023020 Ametek Gemco Hydraulic Brake 6 Inch H
Part J023020
aka J23020 J023020001
6 X 3 Inch Hydraulic Brake Assembly
150 FT LB / Manual Foot Pedal Operation
350 FT LB / Pneumatic Powered Operation
Dim. 12.625 X 10.5625 Inches
Ships in 8 Weeks, Peck MI
Dated 01-2024
(29LBS)
- 1 $3,470.00
1 1 AME-J002398 Ametek Gemco Base Brake Base / Frame
Part J002398
For 6 or 8 Inch Hydraulic Brakes H & HM
6 Inch J23020 J024579 & 8 Inch , J002779 J003205
Item 1, 1 per brake
Ships in 4 to 5 Weeks, Peck MI
Dated 01-2024 C.F. for updated pricing
- 1 N/A N/A N/A
2 2 AME-J023021 Ametek Gemco Brake Shoe Assembly 6"
Part J023021
aka J023021002 J23021
Brake Shoe, Lining & Pin Bushing
For J023020 or J024579 6 Inch Hydraulic Brakes
Item 2, 2 per brake, sold each
Normally a Stock Item @ BPI
Ships from Stock to 3 Weeks
Dated 06-2022
(6LBS) H 4" L 10" W 5" Box
- 0 $649.00
3 2 AME-J023024 Ametek Gemco Lining 6"
Part J023024
aka J023024002 J23024
For a 6 x 3 Inch Hydraulic Brake Assembly
With 6, Drilled and Countersunk Holes
2 per brake, 1 per brake shoe, sold each
Requires J000387 Brass Fasteners which are not included
Undrilled for bonded applications are also available
Non Asbestos Premium RF38 Material
MSDS Sheet Available
Ships from Stock to 10 Days
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
- 0 $116.00
4 16 AME-J000387 Ametek Gemco Fastener
Part J000387
aka J387
Brass Brake Lining Fastener Assembly
For use with Lining J23024 & J007846
Item # 4
Brass Slotted Screw - Bolt, Nut & Lockwasher
For 6 & 8 Inch Hyd Brakes
6 per lining, 12 per brake, sold each
Normally a Stock Item @ BPI
Ships from Stock to 5 Days
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
392 $6.00
5 4 AME-J073920 Ametek Gemco Pin & Bushing Kit
Part J073920
aka J073920005 J73920
For the 6 or 8 Inch Hydraulic Brakes H or HM
Includes 5 different items:
4 J009405 Bushing
4 J001958 Bushing
1 J009408 Pin
1 J009412 Pin
1 J009413 Pin
Ships from Stock to 3 Weeks
Dated 01-2023
(3LBS) H 4" L 6" W 4" Box
0 $308.00
6 4 AME-J073920 Ametek Gemco Pin & Bushing Kit
Part J073920
aka J073920005 J73920
For the 6 or 8 Inch Hydraulic Brakes H or HM
Includes 5 different items:
4 J009405 Bushing
4 J001958 Bushing
1 J009408 Pin
1 J009412 Pin
1 J009413 Pin
Ships from Stock to 3 Weeks
Dated 01-2023
(3LBS) H 4" L 6" W 4" Box
0 $308.00 Item #5 -
7 1 AME-J073920 Ametek Gemco Pin & Bushing Kit
Part J073920
aka J073920005 J73920
For the 6 or 8 Inch Hydraulic Brakes H or HM
Includes 5 different items:
4 J009405 Bushing
4 J001958 Bushing
1 J009408 Pin
1 J009412 Pin
1 J009413 Pin
Ships from Stock to 3 Weeks
Dated 01-2023
(3LBS) H 4" L 6" W 4" Box
0 $308.00 Item #5 -
8 1 AME-J073920 Ametek Gemco Pin & Bushing Kit
Part J073920
aka J073920005 J73920
For the 6 or 8 Inch Hydraulic Brakes H or HM
Includes 5 different items:
4 J009405 Bushing
4 J001958 Bushing
1 J009408 Pin
1 J009412 Pin
1 J009413 Pin
Ships from Stock to 3 Weeks
Dated 01-2023
(3LBS) H 4" L 6" W 4" Box
0 $308.00 Item #5 -
9 1 AME-J073920 Ametek Gemco Pin & Bushing Kit
Part J073920
aka J073920005 J73920
For the 6 or 8 Inch Hydraulic Brakes H or HM
Includes 5 different items:
4 J009405 Bushing
4 J001958 Bushing
1 J009408 Pin
1 J009412 Pin
1 J009413 Pin
Ships from Stock to 3 Weeks
Dated 01-2023
(3LBS) H 4" L 6" W 4" Box
0 $308.00 Item #5 -
10 1 AME-J105190 Ametek Gemco Anti-Drag Kit
Part J105190
aka J105190005
For a 6 or 8 Inch Hyd Brakes
Holds Brake shoes in the released position
Items:
Item 10, J9414 Retractor Spring
Item 11, J9429 Pin
Item 12, J9428 Anti-Drag Housing
Item 13, J9423 Pin
Ships from Stock to 3 Weeks
Dated 01-2024
(3LBS) H 4" L 6" W 3" Box
0 $407.00
11 1 AME-J105190 Ametek Gemco Anti-Drag Kit
Part J105190
aka J105190005
For a 6 or 8 Inch Hyd Brakes
Holds Brake shoes in the released position
Items:
Item 10, J9414 Retractor Spring
Item 11, J9429 Pin
Item 12, J9428 Anti-Drag Housing
Item 13, J9423 Pin
Ships from Stock to 3 Weeks
Dated 01-2024
(3LBS) H 4" L 6" W 3" Box
0 $407.00 Item #10 -
12 1 AME-J105190 Ametek Gemco Anti-Drag Kit
Part J105190
aka J105190005
For a 6 or 8 Inch Hyd Brakes
Holds Brake shoes in the released position
Items:
Item 10, J9414 Retractor Spring
Item 11, J9429 Pin
Item 12, J9428 Anti-Drag Housing
Item 13, J9423 Pin
Ships from Stock to 3 Weeks
Dated 01-2024
(3LBS) H 4" L 6" W 3" Box
0 $407.00 Item #10 -
13 1 AME-J105190 Ametek Gemco Anti-Drag Kit
Part J105190
aka J105190005
For a 6 or 8 Inch Hyd Brakes
Holds Brake shoes in the released position
Items:
Item 10, J9414 Retractor Spring
Item 11, J9429 Pin
Item 12, J9428 Anti-Drag Housing
Item 13, J9423 Pin
Ships from Stock to 3 Weeks
Dated 01-2024
(3LBS) H 4" L 6" W 3" Box
0 $407.00 Item #10 -
14 1 AME-J009431 Ametek Gemco Adjusting Sleeve
Part J009431
Knuckle Adjusting Sleeve
For a 6 Inch J023020 or J024579 Brake
For a 8 Inch J02779 or J003205 Brake
Hydraulic Brake, H or HM
Item 14, 1 per brake
Does not include the adj nut or clamp nut
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
1 $273.00
15 1 AME-J105191 Ametek Gemco Clamp Nut Kit
Part J105191
For a 6 or 8 Inch Hydraulic Brake
Items 15 & 16
Includes:
JC9432 Adjusting Nut
JC9433 Clamp Nut
Normally a Stock Item @ BPI
Ships from Stock to 3 Weeks
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
5 $123.00
16 1 AME-J105191 Ametek Gemco Clamp Nut Kit
Part J105191
For a 6 or 8 Inch Hydraulic Brake
Items 15 & 16
Includes:
JC9432 Adjusting Nut
JC9433 Clamp Nut
Normally a Stock Item @ BPI
Ships from Stock to 3 Weeks
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
5 $123.00 Item #15 -
  1 AME-J007841 Ametek Gemco Actuating Cylinder
Part J007841
aka J00781002
Brake Actuating Cylinder
For a 6 Inch J23020 or 8 Inch J02779 Brake
1 per brake
A recommended spare part
Normally a Stock Item @ BPI
Ships from Stock to 3 Weeks
Dated 01-2024
(5LBS) H 4" L 8" W 4" Box
0 $1,382.00
17 1 AME-J009396 Ametek Gemco Connecting Rod with Threaded Cap
Part J009396
aka J009396770
Part of Hydraulic Actuator J007841
For a 6 or 8 Inch Hydraulic Brake
Item 17, 1 per brake
Dated 01-2024
(1LBS) H 4" L 5" W 4" Box
1 $136.00
18 1 AME-J009395 Ametek Gemco Spring
Part J009395
Return Spring on a J007841 Actuating Cylinder
Item 18, 1 per brake
For a 6 or 8 Inch Hydraulic Brake
Dated 01-2024
(1LB)
- 1 $45.00
19 1 AME-J007841 Ametek Gemco Actuating Cylinder
Part J007841
aka J00781002
Brake Actuating Cylinder
For a 6 Inch J23020 or 8 Inch J02779 Brake
1 per brake
A recommended spare part
Normally a Stock Item @ BPI
Ships from Stock to 3 Weeks
Dated 01-2024
(5LBS) H 4" L 8" W 4" Box
0 $1,382.00 Item #16 -
20 1 AME-J009392 Ametek Gemco Guide
Part J009392
Spring Guide on a J007841 Actuating Cylinder
Item 20, 1 per brake
Dated 01-2021
(1LBS) H 4.00" L 5.00" W 4.00"
2 $83.00
21 2 AME-J073918 Ametek Gemco Repair Kit
Part J073918
aka J073918005 & J73918
For Repair of a J007841 Hydraulic Actuator
Used on a 6 or 8 Inch Type H Brake
Includes 4 items:
Item 21, Felt Seal 9399
Item 24, Piston 9390
Item 25, Cup 666
Item 26, Cup Spring 9389
Normally a stock item @ BPI
Ships from Stock to 2 Weeks
Dated 01-2024
(1LBS) H 4" L 6" W 4" Box
4 $83.00
22 1 AME-J009400 Ametek Gemco Cover
Part J009400
Slave Cylinder Cover / Sleeve
For a J007841 Brake Actuator
Item 22, 1 per brake
For a 6 Inch J023020 or 8 Inch & J002779
Hydraulic Brake
Ships in 10 Days, Peck MI
Dated 01-2024
- 0 $214.00
23 1 AME-J009391 Ametek Gemco Pin Guide
Part J009391
On the J007841 Hyd Actuator
Part J009391
For a 6 " J23020 0r 8 " J002779
Item 23, 1 per brake
Dated 01-2024
- 1 $81.00
24 1 AME-J073918 Ametek Gemco Repair Kit
Part J073918
aka J073918005 & J73918
For Repair of a J007841 Hydraulic Actuator
Used on a 6 or 8 Inch Type H Brake
Includes 4 items:
Item 21, Felt Seal 9399
Item 24, Piston 9390
Item 25, Cup 666
Item 26, Cup Spring 9389
Normally a stock item @ BPI
Ships from Stock to 2 Weeks
Dated 01-2024
(1LBS) H 4" L 6" W 4" Box
4 $83.00 Item #21 -
25 1 AME-J073918 Ametek Gemco Repair Kit
Part J073918
aka J073918005 & J73918
For Repair of a J007841 Hydraulic Actuator
Used on a 6 or 8 Inch Type H Brake
Includes 4 items:
Item 21, Felt Seal 9399
Item 24, Piston 9390
Item 25, Cup 666
Item 26, Cup Spring 9389
Normally a stock item @ BPI
Ships from Stock to 2 Weeks
Dated 01-2024
(1LBS) H 4" L 6" W 4" Box
4 $83.00 Item #21 -
26 1 AME-J073918 Ametek Gemco Repair Kit
Part J073918
aka J073918005 & J73918
For Repair of a J007841 Hydraulic Actuator
Used on a 6 or 8 Inch Type H Brake
Includes 4 items:
Item 21, Felt Seal 9399
Item 24, Piston 9390
Item 25, Cup 666
Item 26, Cup Spring 9389
Normally a stock item @ BPI
Ships from Stock to 2 Weeks
Dated 01-2024
(1LBS) H 4" L 6" W 4" Box
4 $83.00 Item #21 -
Secure Online Order



Secure Online Order

part numbers available for
online order

Shopping Cart
Empty
Checkout is secure


Products Available From Stock
Free shipping via UPS Ground (continental US only, motor freight excluded)

Web Site Features

Part Number Lookup

Enter at least three characters of a Gemco part number to retrive the list of all documents (such as specifications, manuals, guides, drawings, etc.) from our web site, referencing this part number:

Part Number:


Search scope:
This web site only

Formal PDF Quotation

To obtain an instant formal printable PDF quotation use shopping cart and select "View PDF Quote", instead of checking out. Click here for instructions.

Your shopping cart is kept intact and you can still check out at a later time.
Application Notes

Application Notes

Check-out application notes compiled using real-life situations our clients have efficiently resolved using various Gemco products, in these application areas:

  • Cranes
  • Battery Manufacturing
  • Fiberglass Winders
  • Hydraulic Cylinders
  • Crusher/Baler
  • Stretch Hooding Machine
  • Electric Arc Furnace Cover
  • And more
PLS, PLC and Network Modules

PLS, PLC and Network Modules

  • 1746 LDT Interface Card
  • 1989 Quik-Set III Multi-Turn PLS
  • 1990DN DeviceNet Resolver
     Interface Module
  • 1991 Quik-Set IV UHS PLS
  • 1992 Press Set
  • 1995A/B/E/L Micro-Set PLS
  • 1996 Ram Set
  • 2110 Shut Height Monitor
  • 2120 PLC Interface Module
  • 2500 High Speed PLS

Rotary Feedback

Rotary Limit Switches, Position Sensors, Resolvers, Encoders

  • 1950 Precision Snap Switches
  • 1970 Drive-Chek Control
  • 1980 Rotating Cam Limit Switch
  • 1980R Rotating Cam Limit
     Switch with Resolver
  • 1983 Optical Limit Switch
  • 1986A standard foot mount
  • 1986B 2.25" sqr flange mount
  • 1986C 2.06" sqr flange mount
  • 1986D 2.50" dia face mount
  • 1986DN DeviceNet resolver
  • 1986E 100mm face mount
  • 1986G square flange mount
  • 1986GG multi-turn dual
  • 1986I 4.00" round face mount
  • 1986F standard block style
  • 1986H servo mount resolver
  • 1986MD mill duty housing
  • 1986XP explosion proof
  • 1997 Gate Hoist Rotating Cam
     Limit Switch, Designed to
     Meet Specifications of The
     Corps of Engineers

  • 2000 RLS
  • 2006 RLS
  • 3001 Adjustable Couplings
Linear Feedback

Linear Displacement Transducers

  • 925 Linear Cable Reel Sensor
  • 950IS Intrinsically Safe LDT
  • 950MD Mill Duty Housing LDT
  • 952 BlueOx LDT
  • 953A/D/SSI VMAX LDT
  • 953N ReadyLink EtherNet/IP
    LDT with RapidRecall
  • 955 eBrik
  • 955A BRIK Gen III LDT
  • 955C/CA/CD/CDQ BRIK Gen III
  • 955D BRIK Gen III LDT
  • 955DQ BRIK Gen III LDT
  • 955LC BRIK LDT
  • 955S Smart BRIK LDT
  • 955 BRIK Accessories
  • 956 BLOK Housing Option
  • 956S BLOK LDT
  • 957N ReadyLink EtherNet/IP
    LDT with RapidRecall
  • 957A, D & SSI Brik LDT
  • 957A/D/SSI BRIK LDT
    Accessories
  • Rod Style LDT Accessories
  • LDT Magnets, Cables,
    Accessories and Parts
  • 958A Embedded LDT
Other Measurements

Other Measurements

  • 6012/6013 Electrode
    Holders/Electrodes
  • 7010 Tilt Switch Float
  • 7014 Unifloat
  • 7100 Leak Detect Stik
  • 7230 HT Digital Probe
  • 7250 Digital Stik
  • 7330 Pro-Stik II
Press Safety Products

Press Safety Products

  • 1999 Semelex II Safetimeter
  • 1025 Foot and Palm Switches

Gemco Industrial Brakes

Gemco Industrial Brakes

Electro-Thrust Brakes (ET)
   - Thrust Shoe Brakes
Hydraulic Brakes (H, HM)
   - Hydraulic Shoe Brakes
   - Replacement Parts
Magnetic Brakes (TM)
   - Magnetic DC Shoe Brakes
   - Replacement Parts
Solenoid Brakes (CB)
   - Solenoid AC Shoe Brakes
MSDS
   - MSDS Information
Control Relays

Control Relays

  • 1500 Induction Style Relay
  • 5200 Solid State Relay
  • 5400 Plug In Style Solid State
    Relay
  • 5600 Solid State Relay
  • 8040 Standard Control and
    Alarm Panel
  • Motogard - Over-Temperature
    Protection
Frequently Requested Quotations

Frequently Requested Quotations

  • Actuating Cylinder
  • Hydraulic Shoe Brakes
  • Solenoid DC Shoe Brakes
  • Solenoid AC Shoe Brakes
  • Various Replacement Parts
  • 1950 Series Snap Switches
  • And more

This web site is owned and operated by Brake Products, Inc.
Brake Products, Inc.   16751 Hilltop Park Place
  Chagrin Falls, Ohio 44023
  Phone: (440) 543-7962
  Fax:     (440) 543-7963
  Web:   www.brakeproducts.com
  Email: sales@brakeproducts.com
  Federal ID #: 34-1473351
  CAGE Code: 1QTP8
  DUNS# 14-748-2392
  Download: Form W-9
  ACH Form: Word   /   PDF
Supplier of Industrial Brake Parts Since 1985
