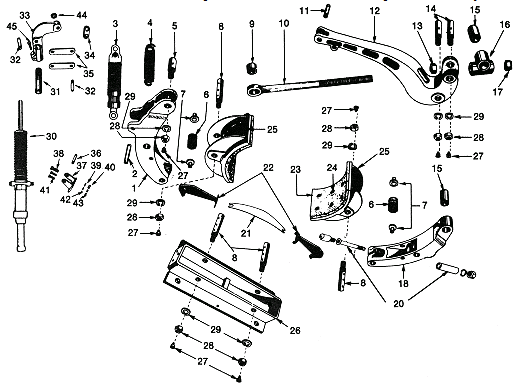

Ametek Gemco J034735 14 X 6 HM Hydraulic Brake Assembly and All Replacement Parts

No Qty
Req'd
Part
Number
Description Picture Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
0 1 AME-J034735 Ametek Gemco Brake
14 X 6 Inch Type HM Hydraulic Brake with the HM Parking Cylinder
Brake does not come with the actuating cylinder as 2 different sizes are used
(200LBS)
- 0 $6,378.00
1 1 AME-J002685 Ametek Gemco Shoe Arm
For a 14 Inch Brake J002929 & J0034735
Item 1, 1per brake
Arcelor 1087486
- 0 $916.00
2 1 AME-J105198 Ametek Gemco Pin Kit
For a 14 Inch Hydraulic Brake
New Spring Clip Pin Design
Changed June 1992, though both types still available
Spring Clipped Pins not threaded like the old style
Use J105201 for brakes older than 1992 (17LBS)
- 2 $341.00
3 1 AME-J023437 Ametek Gemco Actuator
Hydraulic Actuating / Slave Cylinder on the Brake
Part AME-J023437
0.875 Inch Diameter Bore
3 inch Stroke Length
Qty Two 1/2-20 Ports
For use on a 10, 14, or 18 Inch Multiple / Powered Brake Systems
Casting # on Cylinder Body JFF7985
aka as J23437 & JFD23438
Mfg by Licensed OEM
[Amazon]
(5LBS) H 10" L 4" W 4" Box
3 $460.00
4 1 AME-J008135 Ametek Gemco Spring
Part AME-J008135
Main Return / Brake Release Spring
For a WAG-J002929 14 Inch
or WAG-J002932 18 Inch Hyd Brake
Item 4, 1 per brake
A Recommended Spare Part
[Amazon]
(1LB) H 4" L 8" W 4" Box
8 $75.00
5 1 AME-J105198 Ametek Gemco Pin Kit
For a 14 Inch Hydraulic Brake
New Spring Clip Pin Design
Changed June 1992, though both types still available
Spring Clipped Pins not threaded like the old style
Use J105201 for brakes older than 1992 (17LBS)
- 2 $341.00 Item #2 -
6 2 AME-J105195 Ametek Gemco Friction Plug Kit
For a 14 Inch Hydraulic Brake Assembly
Items 6 & 7
Includes 2 Friction Plug Springs J006528 & 4 Friction Plugs J006689
1 per brake
(2LBS) H 6.00" L 2.00" W 2.00"
[Amazon]
7 $47.00
7 4 AME-J105195 Ametek Gemco Friction Plug Kit
For a 14 Inch Hydraulic Brake Assembly
Items 6 & 7
Includes 2 Friction Plug Springs J006528 & 4 Friction Plugs J006689
1 per brake
(2LBS) H 6.00" L 2.00" W 2.00"
[Amazon]
7 $47.00 Item #6 -
8 4 AME-J105198 Ametek Gemco Pin Kit
For a 14 Inch Hydraulic Brake
New Spring Clip Pin Design
Changed June 1992, though both types still available
Spring Clipped Pins not threaded like the old style
Use J105201 for brakes older than 1992 (17LBS)
- 2 $341.00 Item #2 -
9 1 AME-J006694 Ametek Gemco Bushing
Eye Bolt Bushing
For use with Eye Bolt J009634 on a 14 & 18 Inch Hydraulic Brake
Item 9, 1 per brake
(1LB)
- 1 $42.00
10 1 AME-J010068 Ametek Gemco Eye Bolt & Bushing
For a 14 or 18 Inch Brake
Arcelor 1111274 1111275
(5LBS) H 4.00" L 7.00" W 2.00"
[Amazon]
1 $220.00
11 1 AME-J105198 Ametek Gemco Pin Kit
For a 14 Inch Hydraulic Brake
New Spring Clip Pin Design
Changed June 1992, though both types still available
Spring Clipped Pins not threaded like the old style
Use J105201 for brakes older than 1992 (17LBS)
- 2 $341.00 Item #2 -
12 1 AME-J001768 Ametek Gemco Lever Arm
For a 14 or 18 Inch Hydraulic Brake J002929 & J002932
Ref Item # 12
1 per brake
- 0 $340.00
13 1 AME-J105193 Ametek Gemco Brake Part Hyd
Clamp Nut Kit
14 Inch Brakes J002929 & J034735 Hyd Brakes
18 Inch Brakes J002932 & J040065 Hyd Brakes
Includes:
Item 13, Clamp Nut &
Item 17, J009638 Adjusting Nut
(1LB) H 4" L 5" W 4" Box
[Amazon]
7 $47.00
14 2 AME-J105198 Ametek Gemco Pin Kit
For a 14 Inch Hydraulic Brake
New Spring Clip Pin Design
Changed June 1992, though both types still available
Spring Clipped Pins not threaded like the old style
Use J105201 for brakes older than 1992 (17LBS)
- 2 $341.00 Item #2 -
15 2 AME-J006693 Ametek Gemco Bushing
Knuckle Bushing on a 14 or 18 Inch Hyd Brake
Item 15, 2 per knuckle, sold each
- 8 $45.00
16 1 AME-J009637 Ametek Gemco Knuckle 5020 with Bushings
For 14 & 18 Inch Hydraulic Brakes
Item 16, 1 per brake
(5LBS)
- 7 $187.00
17 1 AME-J105193 Ametek Gemco Brake Part Hyd
Clamp Nut Kit
14 Inch Brakes J002929 & J034735 Hyd Brakes
18 Inch Brakes J002932 & J040065 Hyd Brakes
Includes:
Item 13, Clamp Nut &
Item 17, J009638 Adjusting Nut
(1LB) H 4" L 5" W 4" Box
[Amazon]
7 $47.00 Item #13 -
18 1 AME-J002684 Ametek Gemco Shoe Arm
For a 14 Inch Brake J002929 & J0034735
Item 18, 1per brake
Has provision for the shoe centering lock kit
- 0 $842.00
20 1 AME-J087249 Ametek Gemco Kit. Shoe Centering Lock Kit on a 10, 14 or 18 Inch Hydraulic Brake Assembly. Ref. Item # 20. Includes 5 items: Shoe Centering Plug JFC10099, Shoe Centering Stem JFC10100, Lockwasher & Nut JFC10101 1 per brake
(1LBS) H 0.50" L 3.68" W 0.30"
[Amazon]
7 $105.00
21 1 AME-J008126 Ametek Gemco Spring
Leaf Spring for the Centering of the Brake Shoes
For a J002929 or J03473514 Inch Hydraulic Brakes
Item 21, 1 per brake
(2LB)
- 2 $152.00
22 2 AME-J008124 Ametek Gemco Arms
Brake Shoe Centering Arms
For a J002929 & J34735 14 Inch Hydraulic Brakes
Item 22, 2 per brake, sold each
(2LBS) H 2.00" L 6.00" W 2.00"
[Amazon]
1 $125.00
23 1 AME-J001234 Ametek Gemco Lining
Brake Lining for a 14 Inch Hydraulic Brake
Lining has 8 Drilled & Countersunk Holes for J000363 Brass Fasteners which are sold separately
Ref Item # 23
2 per brake, sold each
Premium Non Asbestos Lining Material
MSDS Sheet Provided ( 7 LBS)
- 4 $144.00
24 16 AME-J000363 Ametek Gemco Fastener Assembly
Part AME-J000363
Brass Brake Lining Fastener
For use with Linings J001276 & J001234
Item 24
5/8 Inch Diameter Brass Slotted Screw / Bolt, Nut & Lockwasher
For a 14 & 18 Inch Hyd Brake
6 per lining, 12 per brake, sold each
aka J363
[Amazon]
(1LB) H 4" L 5" W 4" Box
1402 $5.00
25 2 AME-J001235 Ametek Gemco / Wagner Brake Shoe Assembly
Part AME-J001235
14 Inch Hydraulic Brake Shoe & Lining
Newer Style Pin & Snap Rings which are included
Premium Bonded Non-Asbestos Lining Material
Item 25, 2 per brake, sold each
Casting # 1225 aka J1235
[Amazon]
(23LBS) H 7" L 17" W 4" Box
0 $694.00
26 1 AME-J002683 Ametek Gemco Base / Frame
For a J002929 14 Inch Brake
Arcelor 1094535
- 0 $979.00
27 7 AME-J105198 Ametek Gemco Pin Kit
For a 14 Inch Hydraulic Brake
New Spring Clip Pin Design
Changed June 1992, though both types still available
Spring Clipped Pins not threaded like the old style
Use J105201 for brakes older than 1992 (17LBS)
- 2 $341.00 Item #2 -
28 7 AME-J105198 Ametek Gemco Pin Kit
For a 14 Inch Hydraulic Brake
New Spring Clip Pin Design
Changed June 1992, though both types still available
Spring Clipped Pins not threaded like the old style
Use J105201 for brakes older than 1992 (17LBS)
- 2 $341.00 Item #2 -
29 7 AME-J105198 Ametek Gemco Pin Kit
For a 14 Inch Hydraulic Brake
New Spring Clip Pin Design
Changed June 1992, though both types still available
Spring Clipped Pins not threaded like the old style
Use J105201 for brakes older than 1992 (17LBS)
- 2 $341.00 Item #2 -
30 1 AME-J079462 Ametek Gemco Cylinder
HM Park Release Cylinder
For a 14 Inch Type HM J079462 Brake
Item 30, 1 per brake
(20LBS)
- 0 $1,777.00
31 1 AME-J009668 Ametek Gemco Brake Part 8070 Hyd
Part AME-J009668
Tubular Push Rod
Mounts between Yoke and HM Cylinder
For a 14" & 18" Type HM Brake
Item 31, 1 per brake
- 0 $126.00
32 2 AME-J073922 Ametek Gemco Link Kit
For the HM Cylinder on a 14 or 18 Inch Hyd Brake
(1LBS) H 2.00" L 2.00" W 4.00"
[Amazon]
2 $67.00
33 1 AME-J007268 Ametek Gemco Yoke & Rod End
For 14 & 18 Inch Type HM Brakes
Mounts on to the top of the HM Cylinder
Item 33
- 4 $240.00
34 1 AME-J073922 Ametek Gemco Link Kit
For the HM Cylinder on a 14 or 18 Inch Hyd Brake
(1LBS) H 2.00" L 2.00" W 4.00"
[Amazon]
2 $67.00 Item #32 -
35 2 AME-J073922 Ametek Gemco Link Kit
For the HM Cylinder on a 14 or 18 Inch Hyd Brake
(1LBS) H 2.00" L 2.00" W 4.00"
[Amazon]
2 $67.00 Item #32 -
36 1 AME-J009670 Ametek Gemco Pin
Pin for Mounting HM Cylinder to Bottom Bracket
10 , 14 & 18 Inch HM Brakes
1 per brake
- 0 $18.00
37 1 AME-J023434 Ametek Gemco Bracket
Bottom Bracket for mounting an HM cylinder to brake frame
Obtain fasteners locally
Item 37, 1 per brake
- 0 $229.00
38 1 Standard hardware item 1/2"-20x1-3/8" Cap Screw - 0 N/A N/A N/A
39 1 Standard hardware item 1/2" Lockwasher - 0 N/A N/A N/A
40 1 Standard hardware item 1/2"-20 Nut - 0 N/A N/A N/A
41 2 Standard hardware item 5/16"-24x1-1/8" Cap Screw - 0 N/A N/A N/A
42 2 Standard hardware item 5/16" Lockwasher - 0 N/A N/A N/A
43 2 Standard hardware item 5/16"-24 Nut - 0 N/A N/A N/A
44 7 AME-J073922 Ametek Gemco Link Kit
For the HM Cylinder on a 14 or 18 Inch Hyd Brake
(1LBS) H 2.00" L 2.00" W 4.00"
[Amazon]
2 $67.00 Item #32 -
45 1 Standard hardware item 5/16"-18x1 Allen Head Screw - 0 N/A N/A N/A
Secure Online Order



Secure Online Order

part numbers available for
online order

Shopping Cart
Empty
Checkout is secure


Click to visit our Amazon store

All products are covered by a $1,000,000 liability insurance:
Click to view the Certificate

Frequently Sold
Replacement Parts

Web Site Features

Part Number Lookup

Enter at least three characters of a Gemco part number to retrive the list of all documents (such as specifications, manuals, guides, drawings, etc.) from our web site, referencing this part number:

Part Number:


Search scope:
This web site only
All BPI web sites

Formal PDF Quotation

To obtain an instant formal printable PDF quotation use shopping cart and select "View PDF Quote", instead of checking out. Click here for instructions.

Your shopping cart is kept intact and you can still check out at a later time.
Application Notes

Application Notes

Check-out application notes compiled using real-life situations our clients have efficiently resolved using various Gemco products, in these application areas:

  • Cranes
  • Battery Manufacturing
  • Fiberglass Winders
  • Hydraulic Cylinders
  • Crusher/Baler
  • Stretch Hooding Machine
  • Electric Arc Furnace Cover
  • And more
PLS, PLC and Network Modules

PLS, PLC and Network Modules

  • 1746 LDT Interface Card
  • 1989 Quik-Set III Multi-Turn PLS
  • 1990DN DeviceNet Resolver
     Interface Module
  • 1991 Quik-Set IV UHS PLS
  • 1992 Press Set
  • 1995A/B/E/L Micro-Set PLS
  • 1996 Ram Set
  • 2110 Shut Height Monitor
  • 2120 PLC Interface Module
  • 2500 High Speed PLS

Rotary Feedback

Rotary Limit Switches, Position Sensors, Resolvers, Encoders

  • 1950 Precision Snap Switches
  • 1970 Drive-Chek Control
  • 1980 Rotating Cam Limit Switch
  • 1980R Rotating Cam Limit
     Switch with Resolver
  • 1983 Optical Limit Switch
  • 1986A standard foot mount
  • 1986B 2.25" sqr flange mount
  • 1986C 2.06" sqr flange mount
  • 1986D 2.50" dia face mount
  • 1986DN DeviceNet resolver
  • 1986E 100mm face mount
  • 1986G square flange mount
  • 1986GG multi-turn dual
  • 1986I 4.00" round face mount
  • 1986F standard block style
  • 1986H servo mount resolver
  • 1986MD mill duty housing
  • 1986XP explosion proof
  • 1997 Gate Hoist Rotating Cam
     Limit Switch, Designed to
     Meet Specifications of The
     Corps of Engineers

  • 2000 Worm Gear RLS
  • 2000 Spur Gear RLS
  • 2000 Heavy Duty RLS
  • 2006 K Type RLS, 2 Circuit
  • 2006 K Type RLS, 4 Circuit
  • 3001 Adjustable Couplings
Linear Feedback

Linear Displacement Transducers

  • 925 Linear Cable Reel Sensor
  • 950IS Intrinsically Safe LDT
  • 950MD Mill Duty Housing LDT
  • 952 BlueOx LDT
  • 953A/D/SSI VMAX LDT
  • 953N ReadyLink EtherNet/IP
    LDT with RapidRecall
  • 955 eBrik
  • 955A BRIK Gen III LDT
  • 955C/CA/CD/CDQ BRIK Gen III
  • 955D BRIK Gen III LDT
  • 955DQ BRIK Gen III LDT
  • 955LC BRIK LDT
  • 955S Smart BRIK LDT
  • 955 BRIK Accessories
  • 956 BLOK Housing Option
  • 956S BLOK LDT
  • 957N ReadyLink EtherNet/IP
    LDT with RapidRecall
  • 957A, D & SSI Brik LDT
  • 957A/D/SSI BRIK LDT
    Accessories
  • Rod Style LDT Accessories
  • LDT Magnets, Cables,
    Accessories and Parts
  • 958A Embedded LDT
Other Measurements

Other Measurements

  • 6012/6013 Electrode
    Holders/Electrodes
  • 7010 Tilt Switch Float
  • 7014 Unifloat
  • 7100 Leak Detect Stik
  • 7230 HT Digital Probe
  • 7250 Digital Stik
  • 7330 Pro-Stik II
  • ECPT10 Pressure Transducer
  • PST360 Pressure Transducer
Press Safety Products

Press Safety Products

  • 1999 Semelex II Safetimeter
  • 1025 Foot and Palm Switches

Gemco Industrial Brakes

Gemco Industrial Brakes

Electro-Thrust Brakes (ET)
   - Thrust Shoe Brakes
Hydraulic Brakes (H, HM)
   - Hydraulic Shoe Brakes
   - Replacement Parts
Magnetic Brakes (TM)
   - Magnetic DC Shoe Brakes
   - Replacement Parts
Solenoid Brakes (CB)
   - Solenoid AC Shoe Brakes
Catrac Cable & Hose Carrier

Catrac

Catrac Cable & Hose Carrier Products

JLG Replacement Parts

Control Relays

Control Relays

  • 1500 Induction Style Relay
  • 5200 Solid State Relay
  • 5400 Plug In Style Solid State
    Relay
  • 5600 Solid State Relay
  • 8040 Standard Control and
    Alarm Panel
  • Motogard - Over-Temperature
    Protection
Frequently Requested Quotations

Frequently Requested Quotations

  • Actuating Cylinder
  • Hydraulic Shoe Brakes
  • Solenoid DC Shoe Brakes
  • Solenoid AC Shoe Brakes
  • Various Replacement Parts
  • 1950 Series Snap Switches
  • And more

This web site is owned and operated by Brake Products, Inc.
Brake Products, Inc.   16751 Hilltop Park Place
  Chagrin Falls, Ohio 44023
  Phone: (440) 543-7962
  Fax:     (440) 543-7963
  Web:   www.brakeproducts.com
  Email: sales@brakeproducts.com
  Federal ID #: 34-1473351
  CAGE Code: 1QTP8
  DUNS# 14-748-2392
  Download: Form W-9
Supplier of Industrial Brake Parts Since 1985
