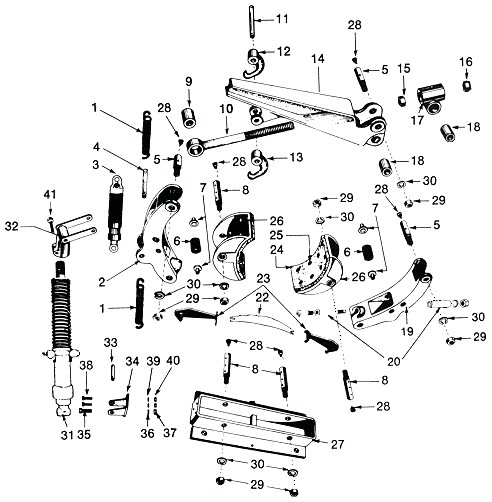

Ametek Gemco J034780 10 X 4 HM Hydraulic Brake Assembly and All Replacement Parts

No Qty
Req'd
Part
Number
Description Picture Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
0 1 AME-J034780 Ametek Gemco Brake Assembly
Hydraulic Brake 10 Inch Diameter
Type HM with parking cylinder but less the slave cylinder
(107LBS)
- 0 $5,152.00
1 2 AME-J008134 Ametek Gemco Spring
Main Return / Release Spring
For a 10 Inch Hydraulic Brake Assembly
Item 1, 2 per brake, sold each
A recommended spare part
Arcelor 1237192A
(1LBS) H 4.00" L 8.00" W 4.00"
[Amazon]
1 $29.00
2 1 AME-J002682 Ametek Gemco Shoe Arm
Part AME-J002682
For a 10" J002926 Hydraulic Brake
Item 2,1 per brake
Arcelor 1087484
- 2 $565.00
3 1 AME-J023437 Ametek Gemco Actuator
Hydraulic Actuating / Slave Cylinder on the Brake
Part AME-J023437
0.875 Inch Diameter Bore
3 inch Stroke Length
Qty Two 1/2-20 Ports
For use on a 10, 14, or 18 Inch Multiple / Powered Brake Systems
Casting # on Cylinder Body JFF7985
aka as J23437 & JFD23438
Mfg by Licensed OEM
[Amazon]
(5LBS) H 10" L 4" W 4" Box
3 $460.00
4 1 AME-J105197 Ametek Gemco Pin Kit
Hinge Pin Kit for a 10 Inch Hydraulic Brake
New pin design from June 1992
Spring Clipped Pins not threaded like the old style
J105200 for brakes older than 1992
(14LBS) H 4.00" L 6.00" W 4.00"
[Amazon]
0 $341.00
5 3 AME-J105197 Ametek Gemco Pin Kit
Hinge Pin Kit for a 10 Inch Hydraulic Brake
New pin design from June 1992
Spring Clipped Pins not threaded like the old style
J105200 for brakes older than 1992
(14LBS) H 4.00" L 6.00" W 4.00"
[Amazon]
0 $341.00 Item #4 -
6 2 AME-J105194 Ametek Gemco Friction Plug Kit
For a 10 Inch Hydraulic Brakes J002926 & J003205
Items 6 & 7
Qty. 2 Each, J006528 Spring & J006942 Pin
Holds the Brake Shoes in the released position
(1LBS) H 3.00" L 4.00" W 4.00"
[Amazon]
4 $37.00
7 4 AME-J105194 Ametek Gemco Friction Plug Kit
For a 10 Inch Hydraulic Brakes J002926 & J003205
Items 6 & 7
Qty. 2 Each, J006528 Spring & J006942 Pin
Holds the Brake Shoes in the released position
(1LBS) H 3.00" L 4.00" W 4.00"
[Amazon]
4 $37.00 Item #6 -
8 4 AME-J105197 Ametek Gemco Pin Kit
Hinge Pin Kit for a 10 Inch Hydraulic Brake
New pin design from June 1992
Spring Clipped Pins not threaded like the old style
J105200 for brakes older than 1992
(14LBS) H 4.00" L 6.00" W 4.00"
[Amazon]
0 $341.00 Item #4 -
9 1 AME-J006940 Ametek Gemco Bushing
(1LB)
- 0 $56.00
10 1 AME-J010069 Ametek Gemco Bolt & Bushing
J006939 & J006940
For a 10 X 4 Inch Hyd Brake
Item # 10 1 per brake
(5LBS) H 4.00" L 8.00" W 2.00"
[Amazon]
3 $220.00
11 1 AME-J105197 Ametek Gemco Pin Kit
Hinge Pin Kit for a 10 Inch Hydraulic Brake
New pin design from June 1992
Spring Clipped Pins not threaded like the old style
J105200 for brakes older than 1992
(14LBS) H 4.00" L 6.00" W 4.00"
[Amazon]
0 $341.00 Item #4 -
12 1 AME-J006945 Ametek Gemco Spring Hook
For a 10 Inch Hyd Brake
Item 12 & 13
2 per brake, sold each
Same as J006945
(1LBS) H 3.00" L 4.00" W 3.00"
[Amazon]
4 $33.00
13 1 AME-J006944 Ametek Gemco Spring Hook
For a 10" J002926 Hyd brake
Part AME-J006944
Item 12 & 13, 2 per brake, sold each
same as J006945
(1LB)
- 0 $33.00
14 1 AME-J008040 Ametek Gemco Lever & Bushing
For a J034780 10 Inch Hyd Brake Type HM
J002822 Lever & J006941 Bushing
Item 14, 1 per brake
(11LBS)
- 0 $518.00
15 1 AME-J105192 Ametek Gemco Clamp Nut Kit on a 10 Inch Hyd Brake J002926 & J34780 Includes a 7/8-14 Clamp Nut Item 15 & a J008287 Adjusting Nut Item 16 (1LB)
(1LBS) H 4.00" L 4.00" W 4.00"
[Amazon]
5 $26.00
16 1 AME-J105192 Ametek Gemco Clamp Nut Kit on a 10 Inch Hyd Brake J002926 & J34780 Includes a 7/8-14 Clamp Nut Item 15 & a J008287 Adjusting Nut Item 16 (1LB)
(1LBS) H 4.00" L 4.00" W 4.00"
[Amazon]
5 $26.00 Item #15 -
17 1 AME-J010071 Ametek Gemco Knuckle & Bushing Assembly
For a 10 X 4 Type H Brake
Knuckle J006114 & Bushing J006941
Item # 17. 1 per brake
(2LB)
Arcelor 1097314
- 2 $147.00
18 2 AME-J006941 Ametek Gemco Bushing
For a 10 Inch J002926 Brake
Knuckle Bushing
Part J006941
Item 18, 2 per brake, sold each
Arcelor 1111634
(1LB)
3 $50.00
19 1 AME-J002681 Ametek Gemco Shoe Arm
Part AME-J002681
For a 10" J002926 Hydraulic Brake
Item 15,1 per brake
Arcelor 10874832
- 2 $594.00
20 1 AME-J087249 Ametek Gemco Kit. Shoe Centering Lock Kit on a 10, 14 or 18 Inch Hydraulic Brake Assembly. Ref. Item # 20. Includes 5 items: Shoe Centering Plug JFC10099, Shoe Centering Stem JFC10100, Lockwasher & Nut JFC10101 1 per brake
(1LBS) H 0.50" L 3.68" W 0.30"
[Amazon]
7 $105.00
22 1 AME-J008122 Ametek Gemco Spring
Leaf Spring for the Centering of the Brake Shoes
For a 10 Inch Hydraulic Brake
Item 22, 1 per brake
(1LB)
- 4 $154.00
23 1 AME-J008120 Ametek Gemco Arms
Brake Shoe Centering Arms
For a J002926 10 Inch Hydraulic Brake
Item 23, 2 per brake, sold each
(2LBS) H 4.00" L 8.00" W 4.00"
[Amazon]
4 $90.00
24 2 AME-J004954 Ametek Gemco Brake Lining
For a 10 Inch Diameter Hydraulic Brake
J002926
Drilled and Countersunk for 8 Brass Fasteners J000233 which are NOT included
Premium Scan-Pac RF38 Non-Asbestos Material
- 0 $101.00
25 16 AME-J000233 Ametek Gemco Fastener
Brass Brake Lining Fastener Assembly
For use with Lining J004954
Item # 25
7/16 Inch Diameter Brass Slotted Screw / Bolt, Nut & Lockwasher
For 10 Inch Hyd Brake J002926
8 per lining, 16 per brake, sold each
(1LBS) H 2.00" L 2.00" W 4.00"
[Amazon]
550 $5.00
26 2 AME-J006110 Ametek Gemco / Wagner Brake Part Hyd
Brake Shoe Assembly
10 Inch Hydraulic Brake Shoe & Lining
With Newer Style Pin & Snap Rings which are included
Premium Bonded Non-Asbestos Lining Material
Item 26, 2 per brake, sold each
Casting # JFD6108 aka J6110
(9LBS) H 5" L 11" W 5" Box
[Amazon]
2 $360.00
27 1 AME-J002680 Ametek Gemco Base. Brake Base / Frame
For a 10 Inch Hydraulic Brakes
J002926 & J34780 Brakes
Item 27
- 0 $884.00
28 7 AME-J105197 Ametek Gemco Pin Kit
Hinge Pin Kit for a 10 Inch Hydraulic Brake
New pin design from June 1992
Spring Clipped Pins not threaded like the old style
J105200 for brakes older than 1992
(14LBS) H 4.00" L 6.00" W 4.00"
[Amazon]
0 $341.00 Item #4 -
29 7 AME-J105197 Ametek Gemco Pin Kit
Hinge Pin Kit for a 10 Inch Hydraulic Brake
New pin design from June 1992
Spring Clipped Pins not threaded like the old style
J105200 for brakes older than 1992
(14LBS) H 4.00" L 6.00" W 4.00"
[Amazon]
0 $341.00 Item #4 -
30 7 AME-J105197 Ametek Gemco Pin Kit
Hinge Pin Kit for a 10 Inch Hydraulic Brake
New pin design from June 1992
Spring Clipped Pins not threaded like the old style
J105200 for brakes older than 1992
(14LBS) H 4.00" L 6.00" W 4.00"
[Amazon]
0 $341.00 Item #4 -
31 1 AME-J079463 Ametek Gemco HM Parking Cylinder
For a 10 Inch Type HM Brake
Item 30, 1 per brake
(20LBS)
- 0 $1,824.00
32 1 AME-J007996 Ametek Gemco Rod End
For the Top of an HM Cylinder on a 10 Inch Hydraulic Brake J034780
(2LBS)
- 0 $182.00
33 1 AME-J009670 Ametek Gemco Pin
Pin for Mounting HM Cylinder to Bottom Bracket
10 , 14 & 18 Inch HM Brakes
1 per brake
- 0 $18.00
34 1 AME-J009665 Ametek Gemco Bracket
Bottom HM Cylinder Frame Attachment Bracket
Item 34, 1 per brake
For 10 Inch HM Brake J34780
Hardware for attachment sold separately
- 0 $86.00
35 1 Standard hardware item 1/2-20 x 1-3/8 Cap Screw - 0 N/A N/A N/A
36 1 Standard hardware item 1/2" Lockwasher - 0 N/A N/A N/A
37 1 Standard hardware item 1/2-20 Nut - 0 N/A N/A N/A
38 2 Standard hardware item 5/16-24 x 1-1/8 Cap Screw - 0 N/A N/A N/A
39 2 Standard hardware item 5/16" Lockwasher - 0 N/A N/A N/A
40 2 Standard hardware item 5/16" Nut - 0 N/A N/A N/A
41 1 Standard hardware item 5/16"-18x1 Allen Head Screw - 0 N/A N/A N/A
